| Rám | C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Velikost | M (18"), L (20"), XL (22") |

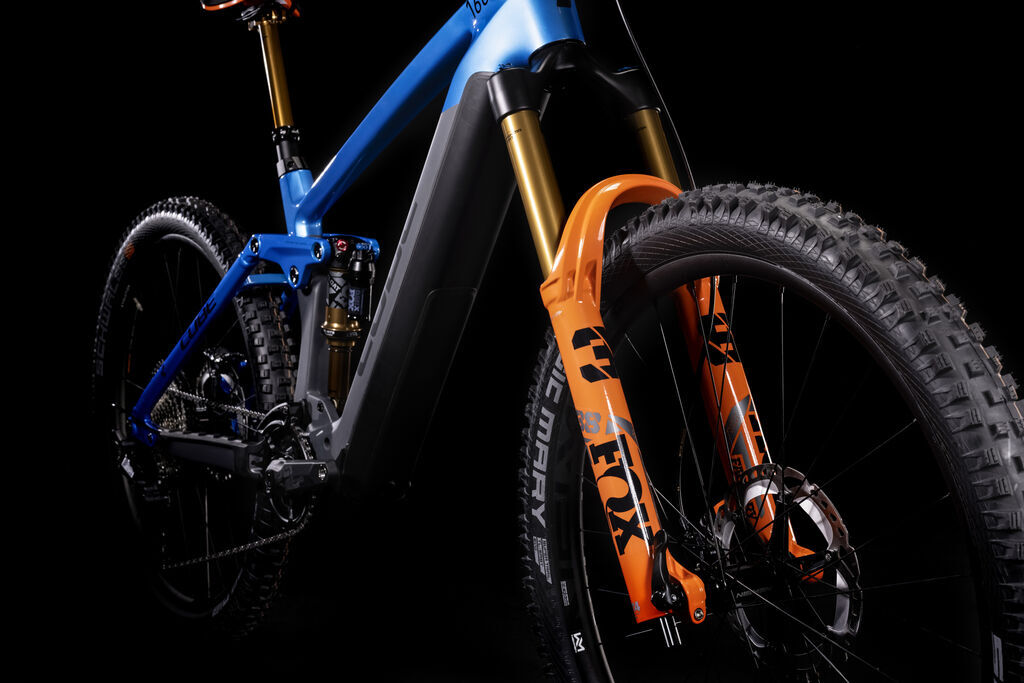

| Vidlice | Fox 38 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated |

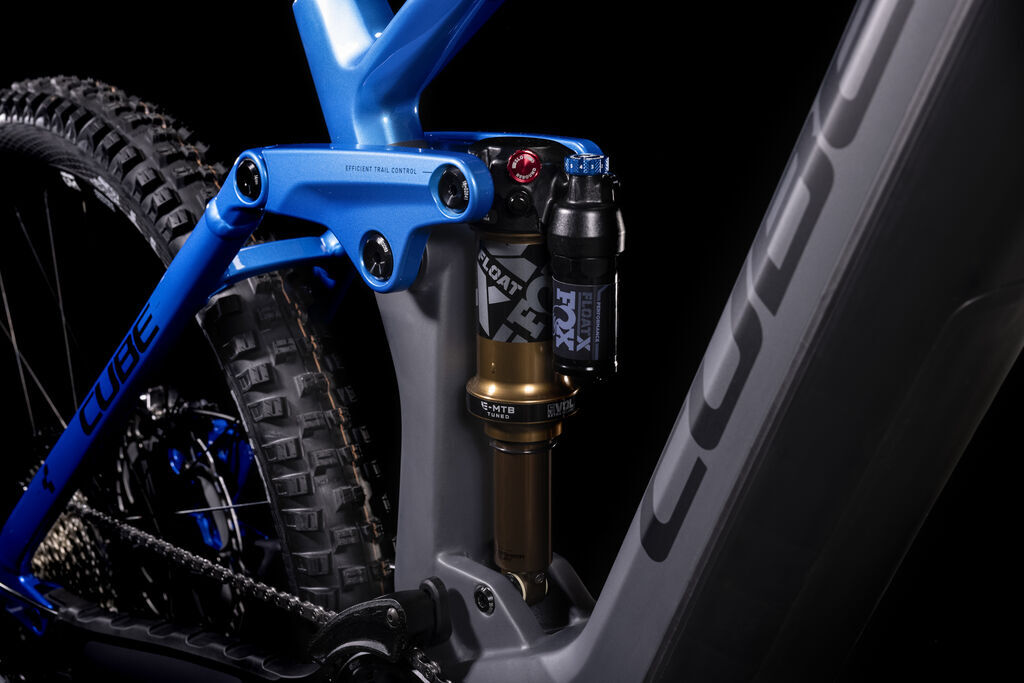

| Tlumič | Fox Float X Factory, 205x65mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated |
| Vložka tlumiče | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Baterie | Bosch PowerTube 750 |
| Displej | Bosch Kiox 300 |
| Nabíječka | Bosch 4A |
| Brzdy | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| Přehazovačka | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Řazení | Shimano XT SL-M8100-IR, Direct Attach |
| Kliky | e*thirteen Plus Crank, 165mm, 36T |
| Kazeta | Shimano XT CS-M8100, 10-51T |
| Řetěz | Shimano CN-M8100 |
| Zapletená kola | Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Přední plášť | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 |
| Zadní plášť | Schwalbe Big Betty, Addix Soft, Super Gravity, Tubeless Easy, 2.4 |
| Řidítka | Newmen Advanced 318.25, Carbon, 780mm |
| Představe | CUBE Performance Stem E-MTB, 31.8mm |
| Gripy | Natural Fit MTB Stiffler Lock On, Soft Compound |
| Sedlovka | Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm) |
| Sedlová objímka | CUBE Screwlock Semi Integrated, 34.9mm |

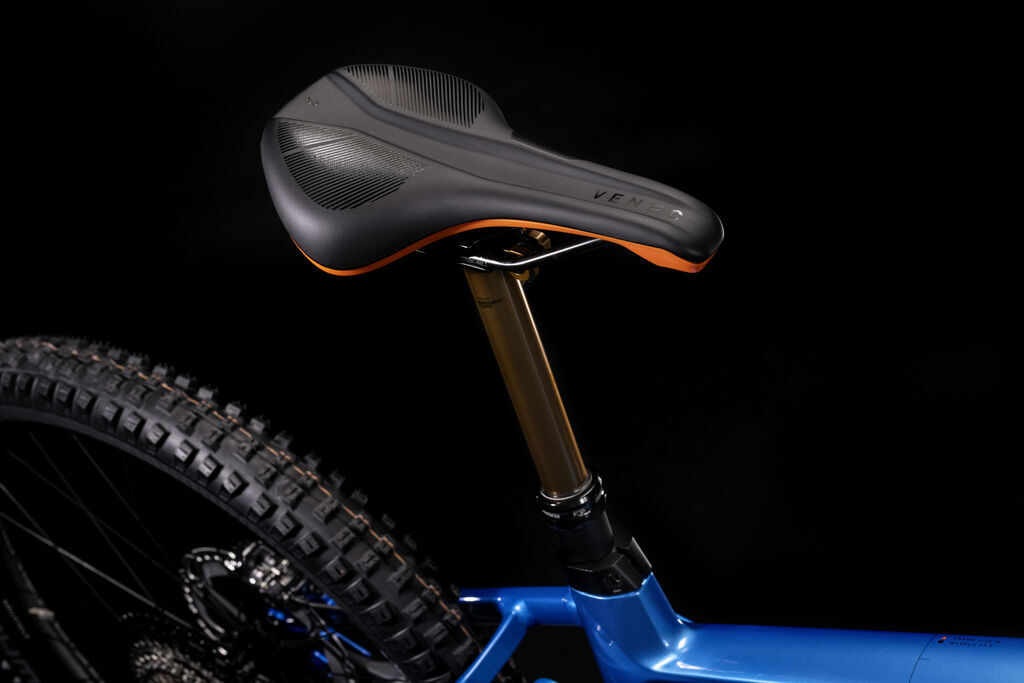

| Sedlo | Natural Fit Venec |
| Hlavové složení | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Hmotnost | 24,3 kg |
| Nosnost | 135 kg |
