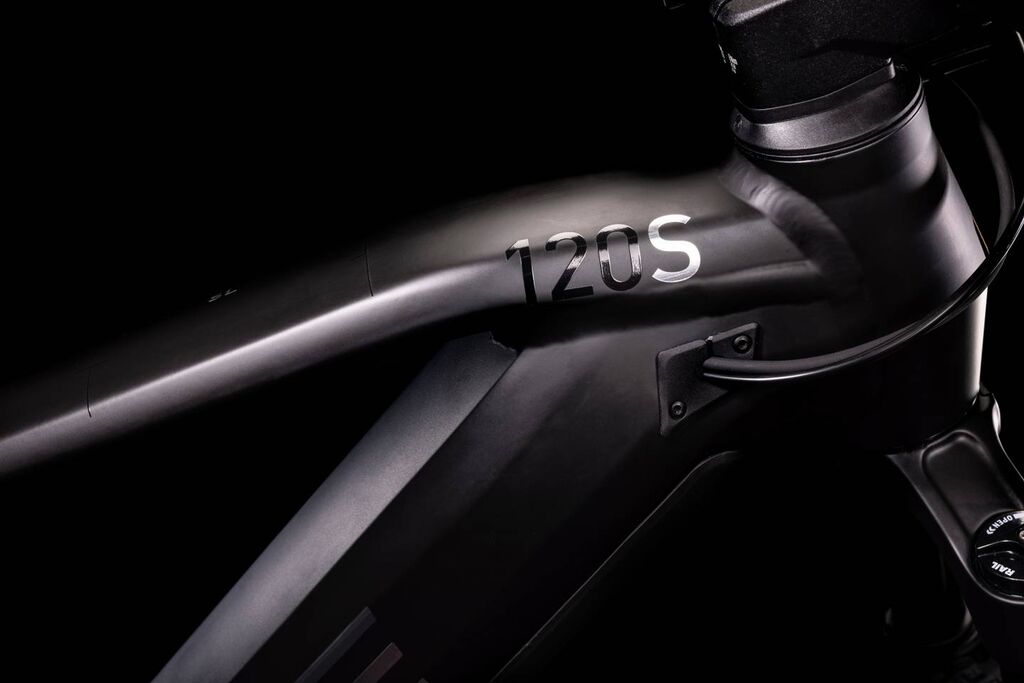

| Rám |
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Velikost |
29: M (18"), L (20"), XL (22") |
| Vidlice |
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 130mm |

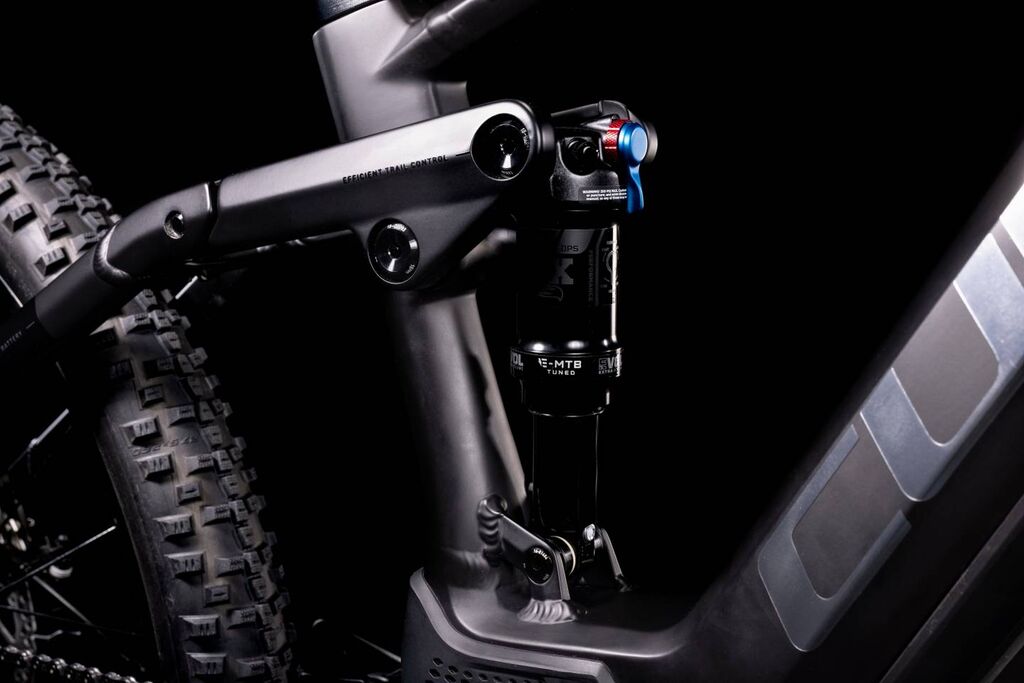

| Tlumič |
Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount |
| Vložka tlumiče |
Top: 54mm Trunnion Mount, Bottom: 30x8mm |
| Motor |
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Baterie |
Bosch PowerTube 750 |
| Displej |
Bosch Kiox 300 |
| Nabíječka |
Bosch 4A |
| Brzdy |
Shimano BR-MT520, Hydr. Disc Brake (203/203) |
| Přehazovačka |
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Řazení |
Shimano Deore SL-M6100, Rapidfire-Plus |

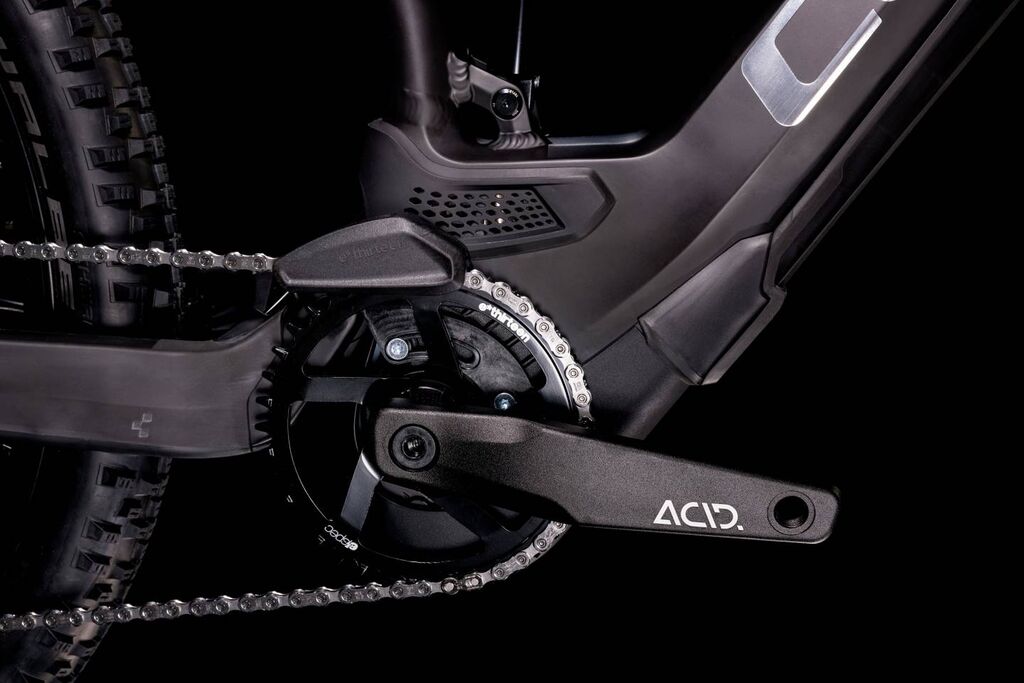

| Kliky |
ACID E-Crank, 170mm, 38T |
| Kazeta |
Shimano Deore CS-M6100, 10-51T |
| Řetěz |
Shimano CN-M6100 |
| Zapletená kola |
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Pláště |
Schwalbe Smart Sam, Active, 2.6 |
| Řidítka |
Newmen Evolution SL 318.25, 760mm |
| Představe |
CUBE Performance Stem E-MTB, 31.8mm |
| Gripy |
Natural Fit All Terrain |
| Sedlovka |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 120mm, L, XL: 130mm) |

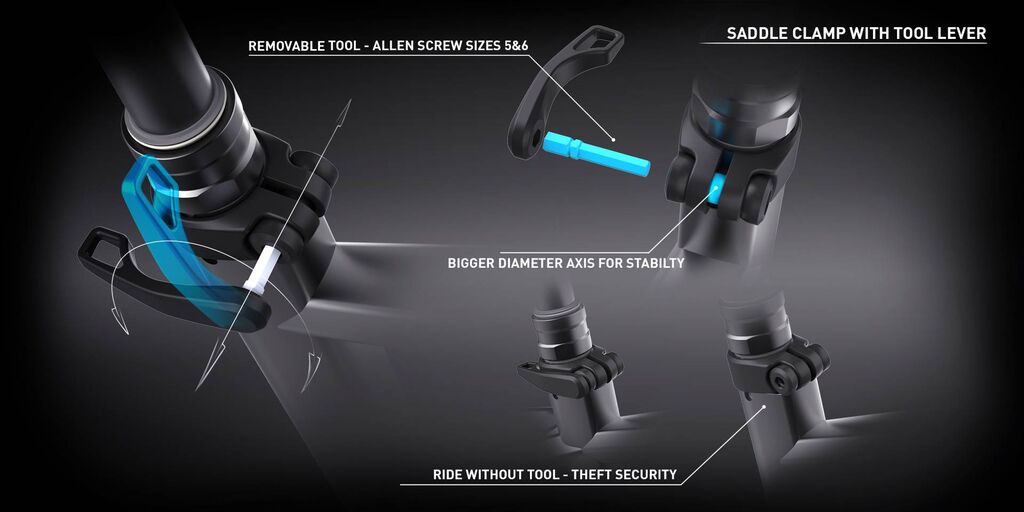

| Sedlová objímka |
CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |

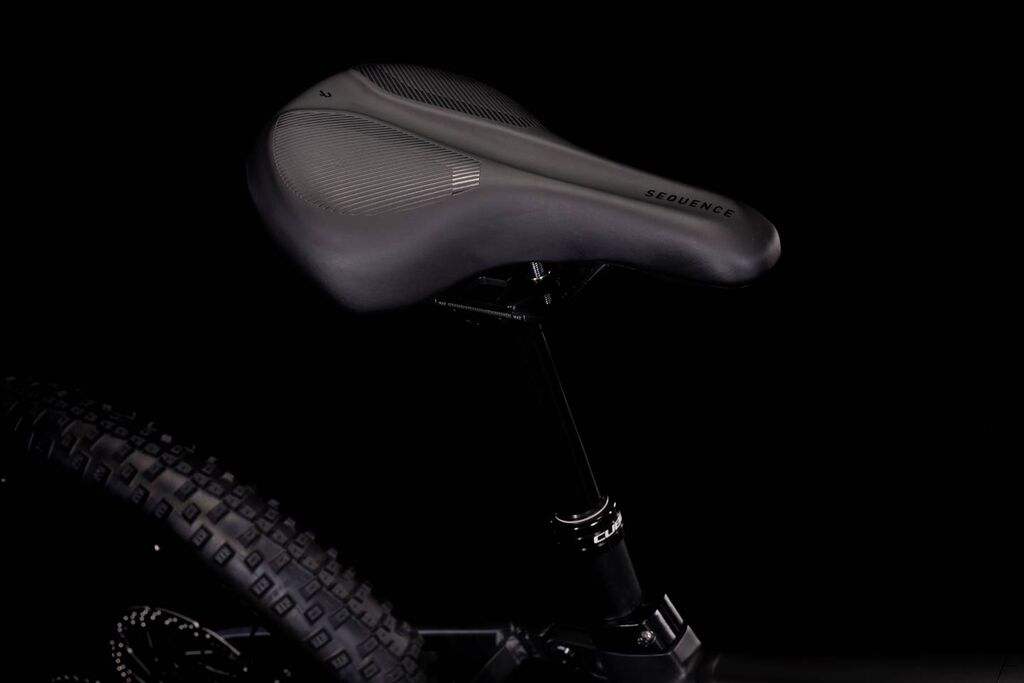

| Sedlo |
Natural Fit Sequence |
| Hlavové složení |

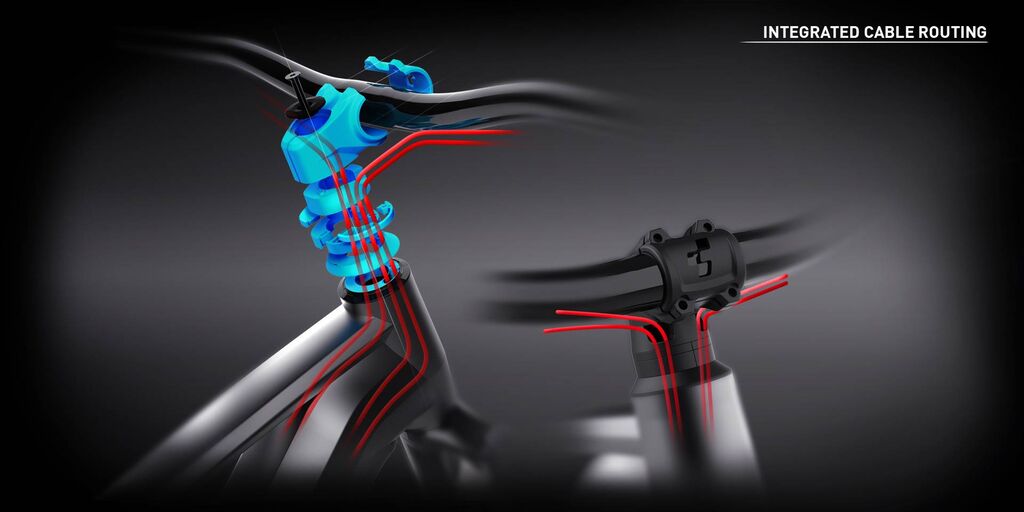

ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Pedály |
CUBE PP MTB |
| Hmotnost |
25,3 kg |
| Nosnost |
135 kg |
