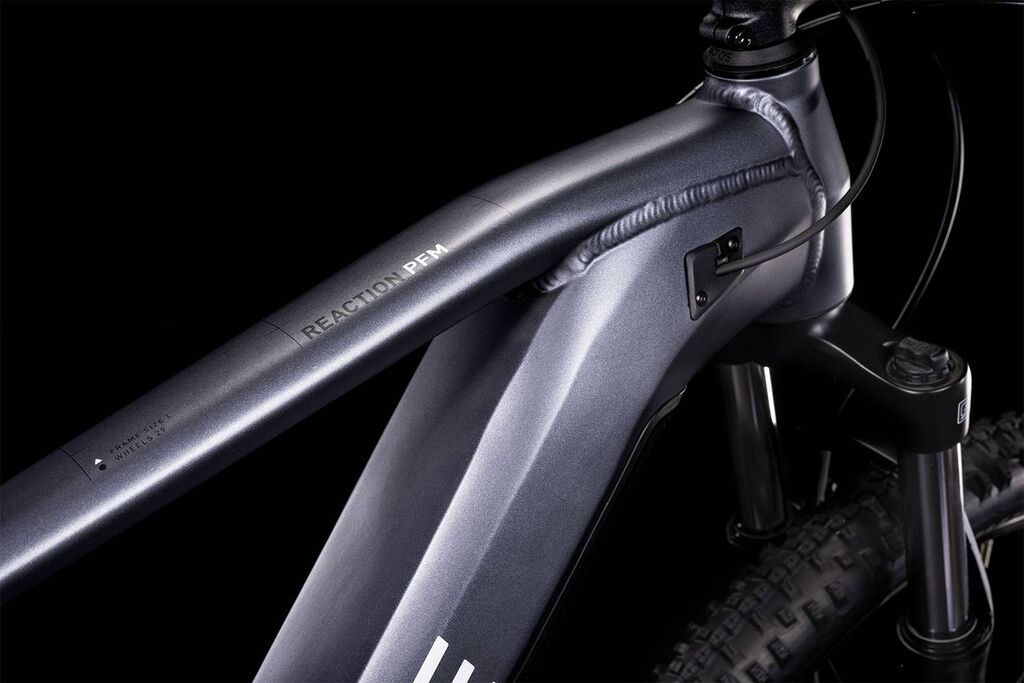

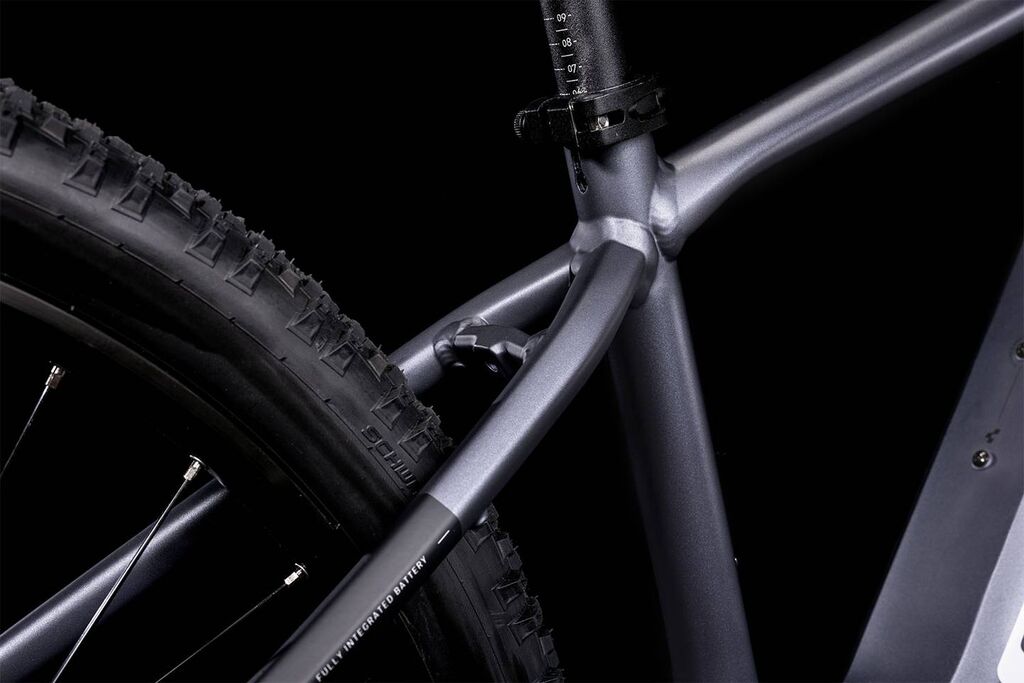

Rám |
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
Velikost |
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19") |
Vidlice |
SR Suntour NVX30 Coil, 100mm |
Motor |
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
Baterie |
Bosch PowerTube 500 |
Displej |
Bosch Purion |
Nabíječka |
Bosch 2A |
Brzdy |
Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Přehazovačka |
Shimano RD-M3100-SGS, 9-Speed |
Řazení |
Shimano SL-M3100-R, Rapidfire-Plus |
Kliky |
ACID E-Crank, 175mm, 38T |
Kazeta |
Shimano CS-HG201, 11-36T |

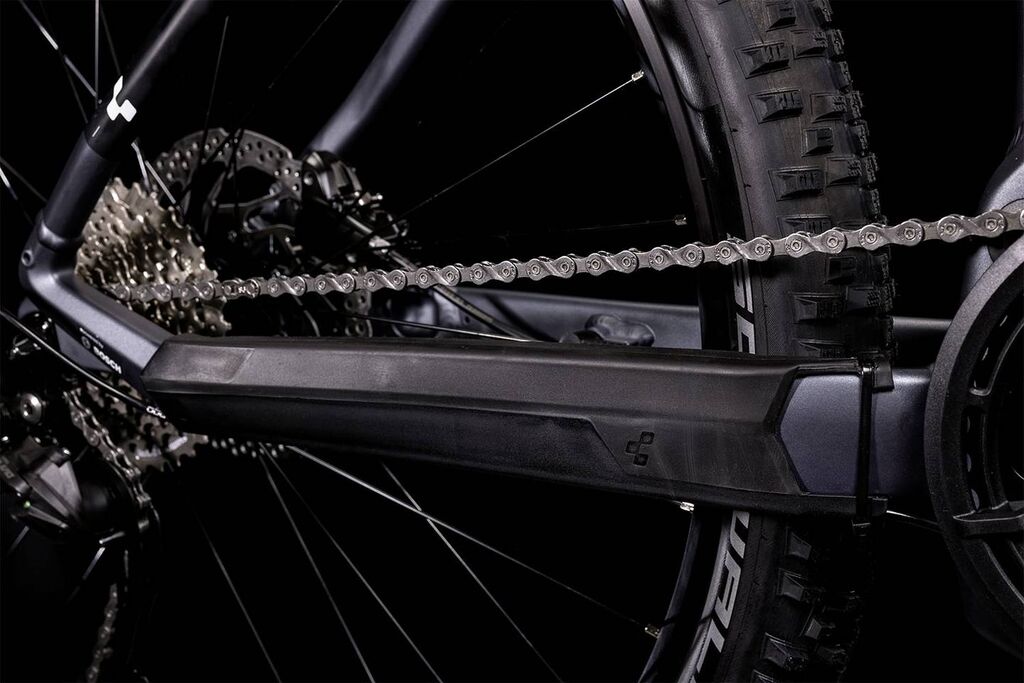

Řetěz |
KMC X9 |
Přední náboj |
Shimano HB-TX505, QR, Centerlock |
Zadní náboj |
Shimano FH-TX505, QR, Centerlock |
Ráfky |
CUBE EX23, 32H, Disc, Tubeless Ready |
Pláště |
Schwalbe Smart Sam, Active, 2.35 |
Řidítka |
CUBE Rise Trail Bar, 720mm |
Představe |
CUBE Performance Stem Pro, 31.8mm |
Gripy |
CUBE Race Grip 31mm, 1-Clamp |
Sedlovka |
CUBE Performance Post, 30.9mm |
Sedlová objímka |
CUBE Varioclose, 34.9mm |

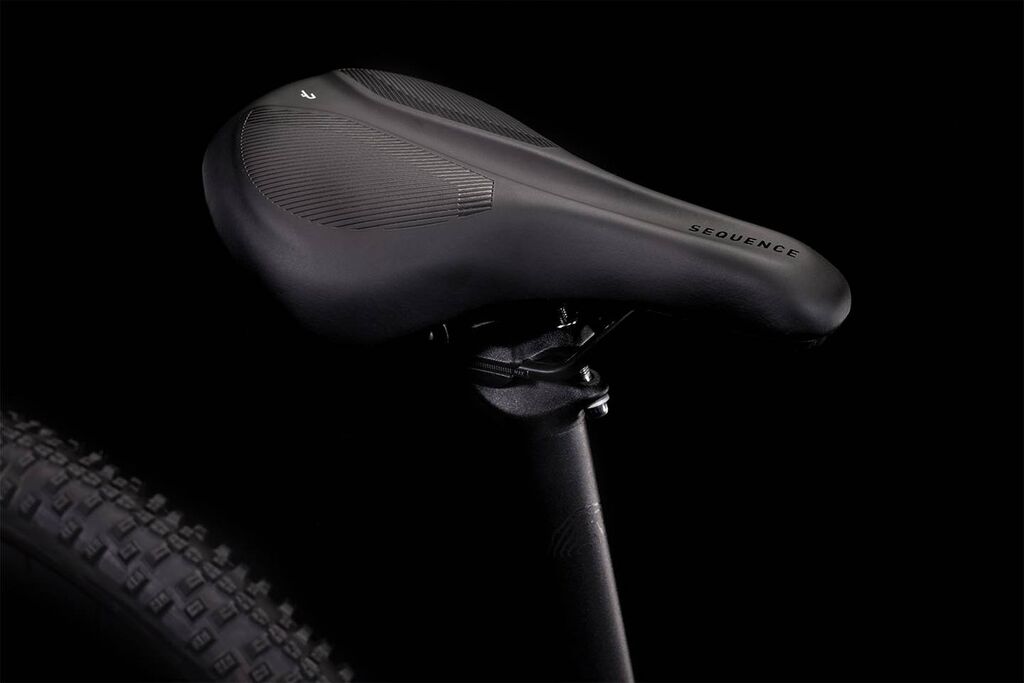

Sedlo |
Natural Fit Sequence |
Hlavové složení |
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Pedály |
CUBE PP MTB |
