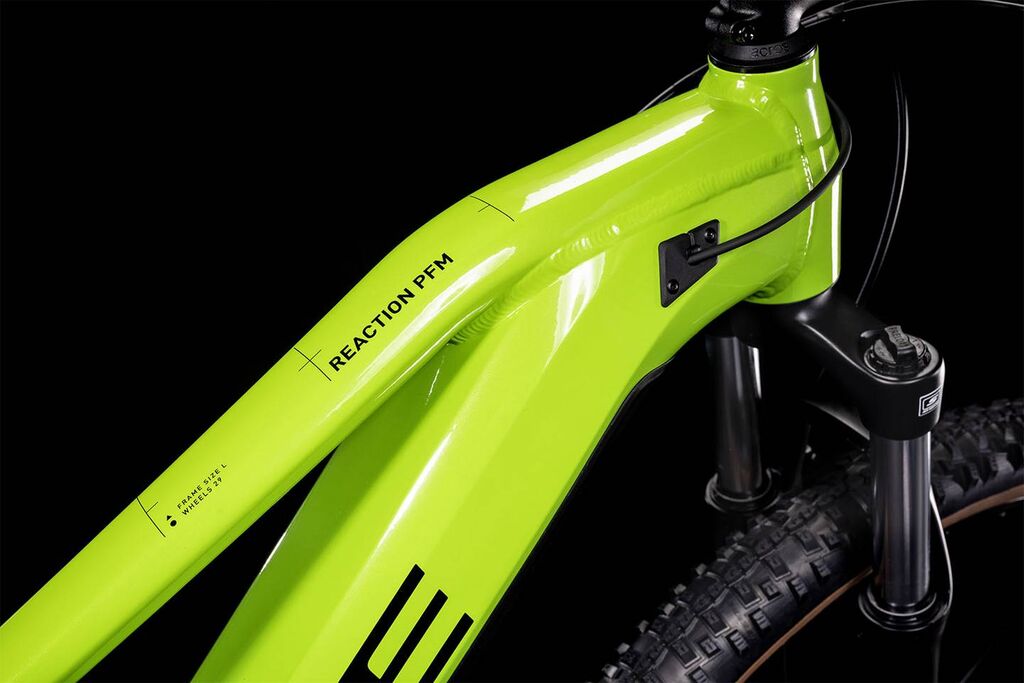

| Rám | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| Velikost | Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19") |
| Vidlice | SR Suntour NVX30 Coil, 100mm |
| Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
| Baterie | Bosch PowerTube 500 |
| Displej | Bosch Purion |
| Nabíječka | Bosch 2A |
| Brzdy | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Přehazovačka | Shimano RD-M3100-SGS, 9-Speed |
| Řazení | Shimano SL-M3100-R, Rapidfire-Plus |

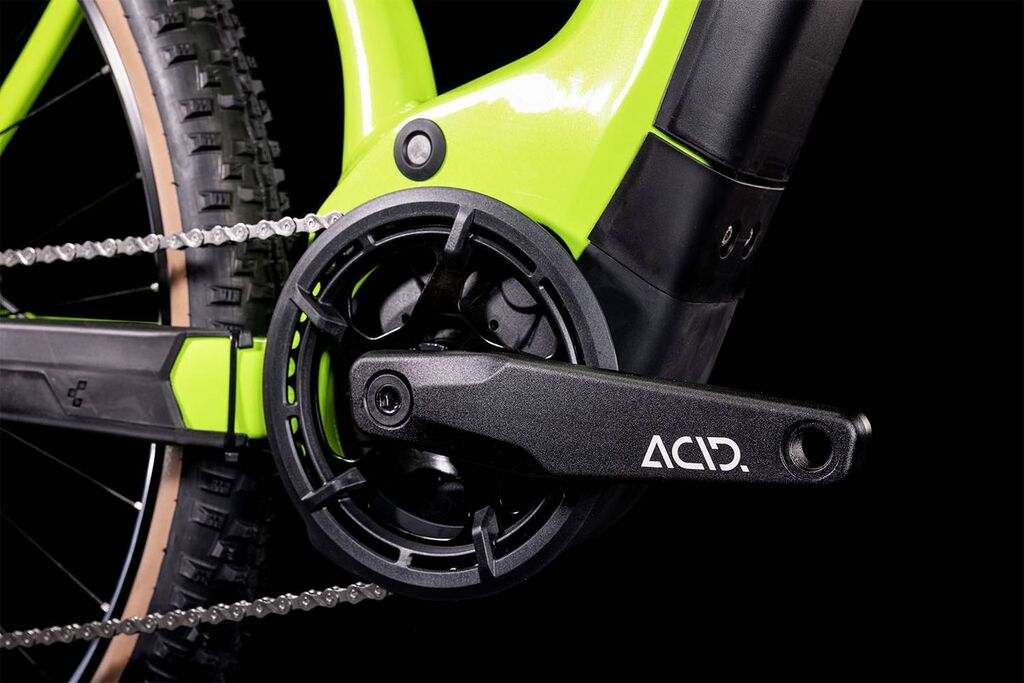

| Kliky | ACID E-Crank, 175mm, 38T |
| Kazeta | Shimano CS-HG201, 11-36T |
| Řetěz | KMC X9 |
| Přední náboj | Shimano HB-TX505, QR, Centerlock |
| Zadní náboj | Shimano FH-TX505, QR, Centerlock |
| Ráfky | CUBE EX23, 32H, Disc, Tubeless Ready |
| Pláště | Schwalbe Smart Sam, Active, 2.35 |
| Řidítka | CUBE Rise Trail Bar, 720mm |
| Představe | CUBE Performance Stem Pro, 31.8mm |
| Gripy | CUBE Race Grip 31mm, 1-Clamp |
| Sedlovka | CUBE Performance Post, 30.9mm |
| Sedlová objímka | CUBE Varioclose, 34.9mm |
| Sedlo | Natural Fit Sequence |
| Hlavové složení | 27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Pedály | CUBE PP MTB |
